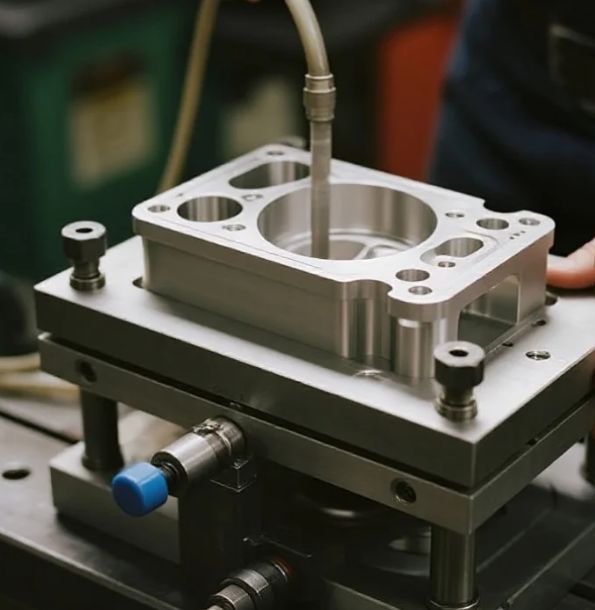

Vacuum Fixturing Solutions for Thin-Wall Parts

In the world of manufacturing, jigs and fixtures are fundamental tools that ensure precision, consistency, and efficiency in production lines. These specialized devices hold, support, and guide workpieces during various operations, from drilling and welding to assembly and inspection. For manufacturing engineers and production managers, understanding the latest advancements in jig and fixture manufacturing is crucial for optimizing production quality and reducing operational costs. This article combines practical industry experience with technical data to provide comprehensive insights into selecting, designing, and implementing effective fixturing solutions for modern production environments.

1 Understanding Jigs and Fixtures: Basic Concepts and Definitions

In manufacturing, jigs and fixtures are tools used to hold workpieces securely in place during machining, assembly, or inspection processes. While these terms are often used interchangeably, they have distinct functions:

• Jigs: These are guiding devices that not only hold the workpiece but also guide cutting tools during operations. For example, a drill jig ensures holes are drilled in precise locations by incorporating bushings to guide the drill bit.
• Fixtures: These are holding devices that secure the workpiece in a fixed position and orientation during machining or assembly operations. They don't guide cutting tools but ensure stability and repeatability.

The primary purpose of both jigs and fixtures is to:

• Maintain accuracy and precision in manufacturing processes
• Increase production speed by reducing setup time
• Ensure consistency across large production runs
• Reduce dependency on operator skill for repetitive tasks

2 The Critical Role of Jigs and Fixtures in Modern Production Lines

Jigs and fixtures contribute significantly to manufacturing efficiency and product quality. Their implementation offers numerous advantages:

2.1 Enhanced Production Quality and Consistency

• Dimensional accuracy: Properly designed fixtures maintain tolerances within ±0.005 inches or better
• Repeatability: Fixtures ensure identical positioning for each workpiece, eliminating variations between parts
• Reduced scrap rates: Studies show implementation of precision fixtures can reduce rejection rates by up to 35%

2.2 Increased Production Efficiency

• Reduced setup time: Fixtures decrease part positioning time by up to 80% compared to manual setups
• Faster operation: Streamlined workpiece handling can increase production speed by 20-30%
• Multi-operation capabilities: Modern fixtures often allow multiple operations in a single setup, reducing handling time

2.3 Cost Reduction and Operator Benefits

• Labor cost savings: Reduced need for highly skilled operators for repetitive tasks
• Training simplification: Fixtures make operations more straightforward, reducing training time
• Improved safety: Secure workpiece holding reduces accidents and enhances operator protection

3 Classification of Jigs and Fixtures: Selecting the Right Solution

Jigs and fixtures can be categorized based on their design, function, and application requirements:

3.1 Basic Types Based on Operation

• Drilling jigs: Incorporate drill bushings for precise hole placement
• Milling fixtures: Secure parts during milling operations with high rigidity requirements
• Turning fixtures: Designed for lathe operations, often with counterweights for balance
• Assembly fixtures: Hold components in correct relationship during joining operations
• Inspection fixtures: Ensure accurate measurement and verification of part dimensions

3.2 Advanced Classification by Complexity

• Plate fixtures: Simplest form, consisting of a plate with locating and clamping elements
• Channel fixtures: Use standard channel sections for construction
• Box fixtures: Enclosed designs for complex part shapes
• Indexing fixtures: Allow precise rotation of parts between operations
• Modular fixtures: Reconfigurable systems using standard components

Table: Comparison of Fixture Types Based on Production Requirements

4 Design Considerations for Production Line Jigs and Fixtures

Effective jig and fixture design requires balancing multiple engineering considerations:

4.1 Fundamental Design Principles

• Location principles: Apply the 3-2-1 rule for deterministic positioning (three points on primary plane, two on secondary, one on tertiary)
• Fool-proofing (Poka-Yoke): Incorporate features that prevent incorrect part loading
• Rigidity and stability: Ensure sufficient stiffness to withstand cutting forces without deflection
• Quick-release mechanisms: Implement fast-acting clamps for rapid loading/unloading
• Ergonomics: Design for operator comfort and safety to reduce fatigue and injury risk

4.2 Material Selection Guidelines

• Tool steel: For high-wear components and cutting guides
• Carbide inserts: For extreme wear resistance in critical areas
• Aluminum alloys: For lightweight fixtures requiring frequent handling
• Composite materials: For specialized applications requiring vibration damping
• Additively manufactured polymers: For low-volume production or complex geometries

4.3 Incorporating Modern Manufacturing Technologies

• Additive manufacturing: 3D printing enables complex fixture geometries that would be difficult with traditional methods
• Modular designs: Standardized components allow quick reconfiguration for different parts
• Smart fixtures: Integrated sensors monitor clamping force, part presence, and process conditions
• Quick-change systems: Hydraulic or pneumatic systems reduce changeover time between production runs

5 Innovative Materials and Manufacturing Techniques for Modern Fixtures

The materials and manufacturing methods for jigs and fixtures have evolved significantly:

5.1 Traditional vs. Advanced Materials

• Traditional materials: Mild steel, cast iron, and tool steel remain popular for high-volume applications
• Composite materials: Offering excellent strength-to-weight ratios for large fixtures
• Engineering plastics: Providing corrosion resistance and electrical insulation properties
• Lightweight alloys: Aluminum and titanium alloys reducing operator fatigue without sacrificing strength

5.2 Additive Manufacturing in Fixture Production

Recent research demonstrates the growing application of additive manufacturing in fixture production:

• Rapid prototyping: 3D printed fixtures can be produced in 24-48 hours versus weeks for traditional methods
• Complex geometries: AM enables integrated cooling channels, lightweight structures, and conformal features
• Cost-effectiveness: For low-volume production (lots under 50 units), additive manufacturing can reduce fixture costs by 60-80%

A 2025 case study compared three fixturing methods for CNC machining of aluminum parts produced by Laser Powder Bed Fusion (LPBF):

• Machined bolt-on jig: Provided highest dimensional accuracy and angular stability
• Additively manufactured polymer counterparts: Offered geometry-specific interfaces and cost benefits but showed slightly increased deviations
• Integrated fixturing interfaces: Designed directly into the part but exhibited the largest deviations due to yielding during machining

The findings highlight a trade-off between cost, lead time, and accuracy when selecting fixturing methods.

6 Implementation Strategy: Integrating Jigs and Fixtures into Production Lines

Successful implementation of jigs and fixtures requires careful planning and execution:

6.1 Assessment and Planning Phase

• Process analysis: Identify bottleneck operations where fixtures would provide maximum benefit
• ROI calculation: Evaluate implementation costs against projected savings in labor, scrap reduction, and increased throughput
• Phased implementation: Introduce fixtures gradually to minimize production disruption
• Operator training: Ensure workforce understands proper use and benefits of new fixtures

6.2 Design and Fabrication Process

• Virtual validation: Use CAD and FEA software to validate designs before fabrication
• Prototype testing: Verify performance with sample parts before full implementation
• Iterative refinement: Incorporate feedback from operators into design improvements
• Documentation: Create comprehensive manuals for setup, operation, and maintenance

6.3 Maintenance and Continuous Improvement

• Regular inspection: Establish schedule for checking wear and damage
• Preventive maintenance: Replace worn components before they affect part quality
• Performance monitoring: Track key metrics to identify improvement opportunities
• Redesign optimization: Update fixtures based on process changes or product revisions

7 Measuring Success: Key Performance Indicators for Fixture Implementation

To evaluate the effectiveness of jig and fixture implementation, monitor these critical metrics:

Table: Key Performance Indicators for Fixture Implementation

8 Future Trends in Jig and Fixture Manufacturing

The future of jig and fixture technology is evolving rapidly with several emerging trends:

• Industry 4.0 Integration: Smart fixtures with embedded sensors providing real-time data on production metrics and tool condition
• Adaptive Fixturing: Self-adjusting fixtures that can accommodate part variations without manual intervention
• Digital Twin Technology: Virtual replicas of physical fixtures enabling simulation and optimization before implementation
• Sustainable Design: Focus on recyclable materials and energy-efficient manufacturing processes for fixture production
• Collaborative Robotics: Fixtures designed specifically for human-robot collaborative work environments.
